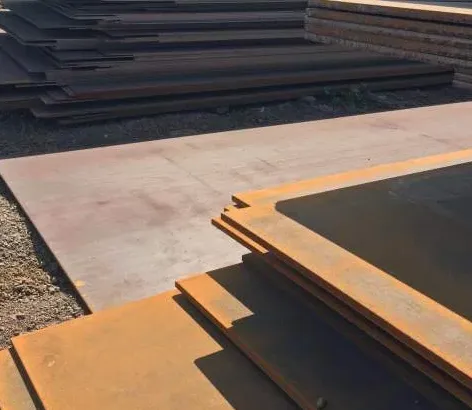

ASTM A662 Klas C pou plak veso presyon

ASTM A662 Grade C is a carbon-manganese-silicon steel plate specifically designed for welded pressure vessels, particularly those operating in moderate and lower temperature service, where improved low-temperature notch toughness is crucial. This steel is characterized by its chemical composition and mechanical properties, including specific tensile strength, yield strength, and elongation requirements.

Dekri teren

Karakteristik teknik

A662 Klas C konpozisyon chimik

A662 Klas C konpozisyon chimik
Egalize	Eleman max la (%)
Egalize	C	Mn	P	S	Si
A662 Klas C	0.24	0.92-1.72	0.035	0.035	0.13-0.55

A662 Klas C pwopriyete mekanik

Egalize	A662 Klas C pwopriyete mekanik
Egalize	Epesè	Rekòlt	Raman	Elongasyon
A662 Klas C	mm	Min MPA	MPA	Min
	200	295	485-620	18
	50	295	485-620	22

Lòt kondisyon

UT (egzamen ultrasons), AR (tankou cho woule sèlman), TMCP (tèmik pwosesis kontwòl mekanik), N (normalized), Q+T (janm pase ak apeze), z tès direksyon (Z15, Z25, Z35), Charpy V-Notch tès enpak, tès la twazyèm pati (tankou SGS tès), KOU

Penti .

Q1:Ki sa ki se minimòm konsepsyon metal la metal (MDMT) sètifikasyon pou A662 Klas C, ak ki jan li konpare ak klas A/B?

Limit sèvis sètifye:

Asme seksyon VIII div .1apwouve pou-120 degre(vs klas B a -101 degre)

Charpy V-Notch:Pi gran pase oswa egal a 34j nan-110 degre(baz metal) / pi gran pase oswa egal a 40J nan -90 degre (Weld)

ISO 21009-3Konfòmite pou sistèm LNG plen-kontwòl

Remak Espesyal:EgzijeFine pratik grenn(ASTM Non . 8 oswa sibtilite)

Q2:Ki sa ki ranje a kontni nikèl nan klas C, ak ki jan li afekte pèfòmans kriyojenik?

Chimi alyaj amelyore:

Nikèl:1.50-2.00% (vs 0.80-1.20% nan klas B)

Ultra-ba enpurte:P mwens pase oswa egal a 0.010%, s mwens pase oswa egal a 0.008%

Mikwo-alyaj:Ti (0.01-0.03%) + b (0.001-0.003%)

Avantaj métallurgique:

DBTT (Ductile-Brittle Tranzisyon Temp) <-150°C

Atravè-epesè Z-direksyon ψ pi gran pase oswa egal a 45%

Q3:Ki sa ki pwosedi yo soude obligatwa pou -196 degre sèvis nitwojèn likid?

Pwotokòl soude LH2/LN2:

Chofe:120-180 degre (thermocouple-kontwole)

Consommables:AWS A5.28 ER100S-NI3 (5.5%NI)

Kontwòl InterPass:Mwens pase oswa egal a 100 degre ki gen mwens pase oswa egal a 15kj/cm opinyon chalè

Tretman Post-Weld:

PWOPRIYE PWOGRAMANnan 600 ± 10 degre pou 2hrs +Simile tretman chalè pòs-soude (SPWHT)

Pwogresivman etalaj ut + tofd for thickness >30mm
